After you finalize the advanced trigger condition setup, you can disable runtime configuration and, if necessary, enable pipelining for the Equality object by performing the following steps:
-
If the Timing Analyzer results
indicate that the Equality object is on the critical path

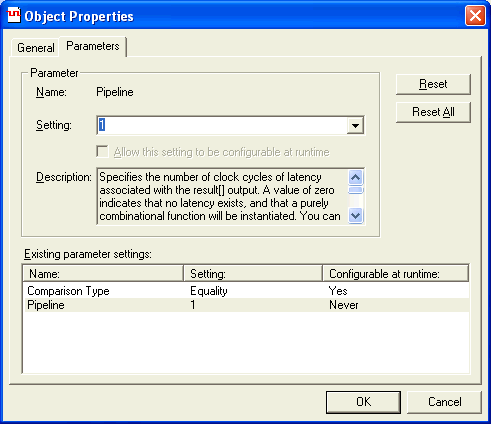

for the design, enable pipelining by clicking Pipeline in
the Existing Parameter Settings list and specify the number
of clock cycles of latency by typing a value in the Setting
list.
Note:
Enabling pipelining for a Comparison object reduces register-to-register latency within the object, which can remove the object from the critical path.
